浙江·寧波市城市展覽館
Playze+Schmidhuber
它位于新建成的“寧波東部新城”的中心，毗鄰市政廳和市民廣場。寧波城市規劃展覽中心不僅僅是一個簡單的展示空間。其目標是在新區創造一個有吸引力的、無障礙的公共空間，從而促進市民和決策者之間的對話。
It is located at the heart of the newly built “Ningbo East-ern New Town” adjacent to the city hall and the civic square. The Ningbo Urban Planning Exhibition Center is supposed to be more than just a simple presentation space. The goal was to create an engaging, accessible public space in the new district, and thereby foster the dialogue between citizens and decision-makers.
為了強調該中心作為公共場所的作用，該中心作為周邊濱水景觀的延續而發展，因此，它是公共公園不可分割的一部分。連接道路、橋梁和街道被編織成一個通向建筑物的許多入口的地形。公園和建筑物之間的界限已經模糊了。
To emphasize the role of the center as a public venue, it has been developed as a continuation of the surrounding waterfront landscape and is, therefore, an integral part of the public park. Connecting pathways, bridges and streets have been woven into a topography leading to the many entrances of the building. The boundary between the park and the building has been blurred.
寧波市陶瓷生產歷史悠久。所謂的陶瓷之路就是從這里開始的。在整個文明史上，這座城市在陶瓷的國內和國際貿易中扮演著重要的角色。也就是說，釉面陶瓷的使用不僅僅是對寧波當地傳統的一種致敬；建筑的紋理釉面陶瓷也創造了周圍景觀的短暫反射。這些反射以不同的強度，根據一天中的時間、季節和天氣，使立面充滿活力。
The City of Ningbo has a rich history of ceramic production. It was here that the so-called Ceramic Road began. The city played an important role in the national and international trade of ceramics throughout the civilization’s history. That said, the use of glazed ceramics is not simply an homage to the local traditions of Ningbo; the building’s textured glazed ceramics also create ephemeral reflections of the surrounding landscape. These reflections animate the facade with varying intensity depending on the time of day, season, and weather.
展廳主要分布在大樓的三層和四層。一樓和二樓提供了各種各樣的公共空間，包括餐廳、圖書館、閱覽室、會議區、兒童教育和操場、教室以及一個大型多功能活動大廳。屋頂上還有一家咖啡館，可以直接從風景區進入，咖啡館邀請游客放松身心，欣賞周圍城市的美景。
The exhibition halls are mainly allocated on the third and fourth floors of the building. The first and second floors offer a large variety of public spaces, including a restaurant, library and reading space, meeting areas, a children’s education and playground, classrooms, as well as a large multi-purpose event hall. On the roof, which is also directly accessible from the landscape, a café invites visitors to relax and enjoy the views of the surrounding city.
從來沒有打算通過這個項目來展示數字工具的能力。然而，這座建筑的設計、開發、生產和建造離不開尖端數字技術。為了應對結構、幕墻、二次結構和陶瓷表皮的空間分配和協調的復雜性，必須編寫一個定制的計算機腳本。該腳本自動生成結構和立面的3D模型，以及各承包商的生產圖紙。
It was never the intention to demonstrate the capabilities of digital tools by means of this project. Nevertheless, this building couldn’t have been designed, developed, produced and built without the help of cutting-edge digital technology. In order to cope with the complexity of the spatial allocation and coordination of the structure, curtainwall, secondary structure, and ceramic skin a tailor-made computer script had to be coded. The script automatically generated a 3D model of the structure and facade, as well as production drawings for the respective contractors.

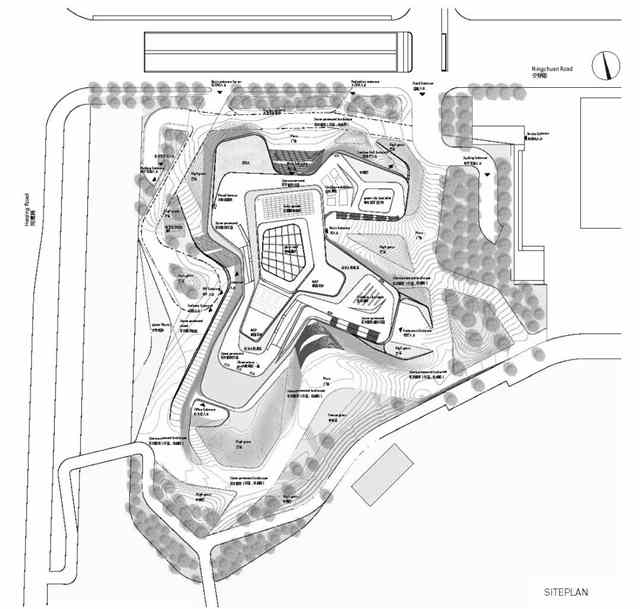

總平面圖

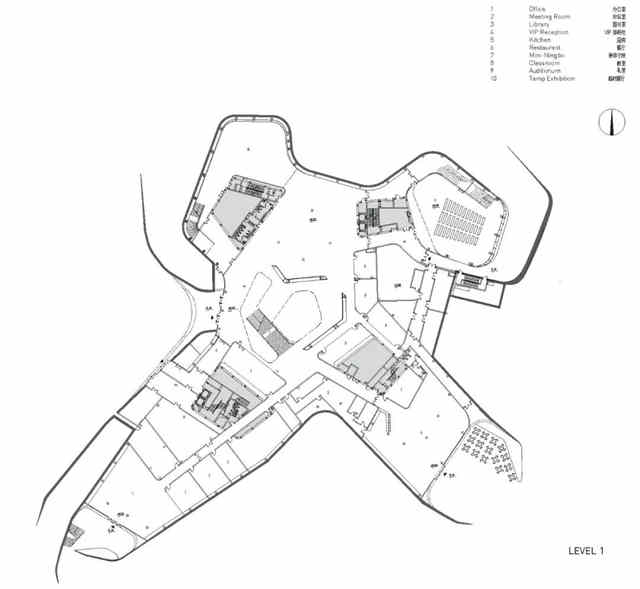

一層平面圖

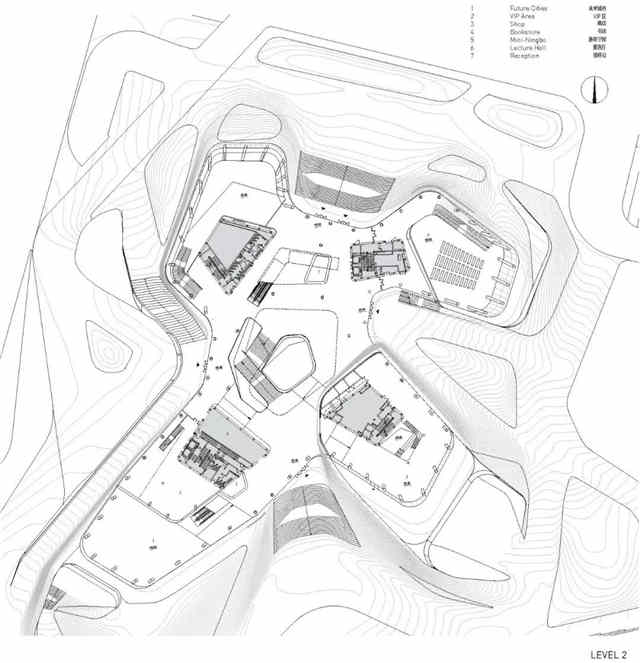

二層平面圖

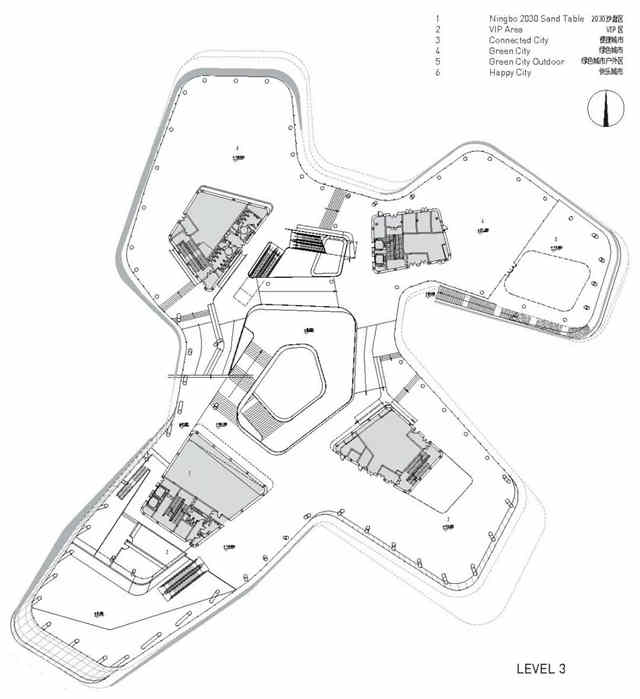

三層平面圖

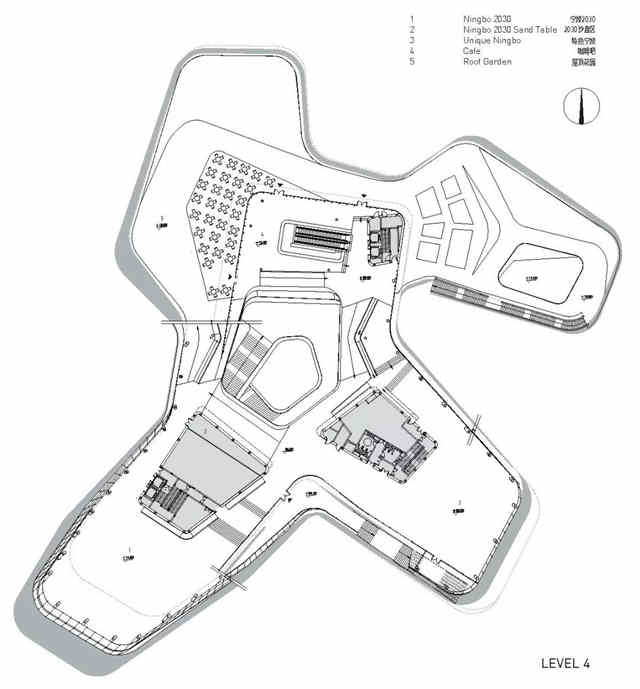

四層平面圖

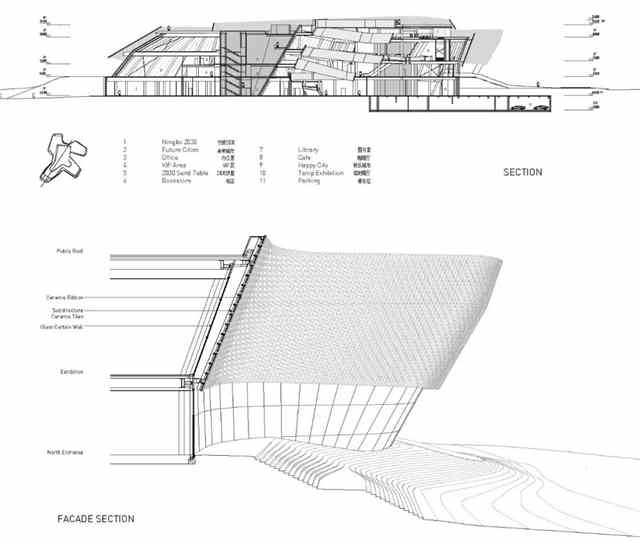

剖面圖

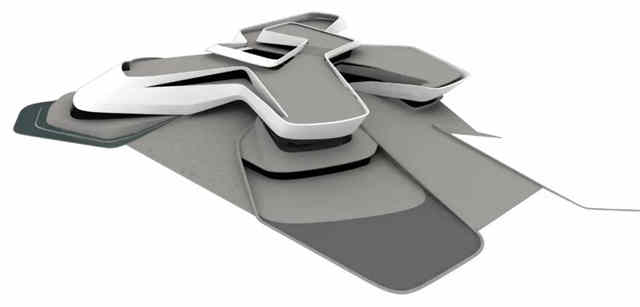

模型
建筑師：Playze、Schmidhuber
地點：浙江省 寧波市
面積：24929.0平方米
年份：2019
攝影：清筑設計
